How to Check Solar Panel Polarity (Reverses + Fixes)

A solar panel’s polarity is essential when installing or replacing a solar panel. Solar panels are polarized to generate more power during the day, but if your system is not set up correctly, you could be wasting valuable energy.

Have you ever wondered what “polarity” means? It means that one side of the generator has positive charges, and the other has negative charges.

This voltage difference allows electric current to flow through wires from one end to another, producing electricity! Here are some of the key points we’ll cover:

  • How to check solar panel polarity
  • How do I fix reverse polarity?
  • Can solar panels Work in reverse?

Let’s check how easy it is to check the polarity of a solar panel, plus some essential solar knowledge.

Ac Adapter Converter Box
Ac Adapter Converter

How to check solar panel polarity:

To check solar panel polarity, you need a voltmeter or multimeter. First, you must turn off the power going into your DC circuit breaker box. Then, head outside and remove the covers protecting your PV panels’ wiring terminals.

Place one probe from your voltmeter onto the two-terminal leads connected to an individual PV module. If both probes read positive voltage, this side of the generator has positive charges, and negative charges are on the other side.

This voltage difference allows electric current to flow through wires from one end to another, producing electricity! In other words, you have correctly identified “positive” and “negative” polarity.

Soalr Panel System Diagram Solar Panels Inverter Charge Controller Photovoltaic Effect And Charging - Sol Voltaics: Solar Panel Information
Solar Panel And Li-Ion Battery Generation System For Home. Renewable Energy Concept. Simplified Diagram Of An Off-Grid System. Solar Panel, Battery, Charge Controller And Inverter.

What is Reverse Polarity?

If you get two different readings, one positive and one negative, your system has reverse polarity. Reverse polarity can be caused by incorrect wiring or damaged equipment.

The generator’s output may be reversed if you have an older inverter incompatible with newer PV modules. In this case, it will need to be repaired for electricity power generation to flow correctly through wires from one end to another, which produces energy!

Also, if you have an inverter incompatible with your new solar panels, you may reverse the polarity of the generator.

How Solar Panels Are Wired - Sol Voltaics: Solar Panel Information
How Solar Panels Are Wired

How do I fix reverse polarity?

If you have an inverter incompatible with your new solar panels, the polarity of the generator may be reversed. To fix this, open up your circuit breaker box to expose all wires coming into it.

Now, refer back to step one and identify which wire corresponds to a positive voltage because now you need to attach that lead from your voltmeter onto a negative terminal on your DC fuse block.

If everything is backward (you identified + as – and vice versa), then reverse these leads by switching them where they connect at the terminals inside of the DC circuit breaker box; if red was initially connected to the negative (-), then change it so that black is attached instead!

Then reconnect covers over wiring terminals after checking again for proper polarity.

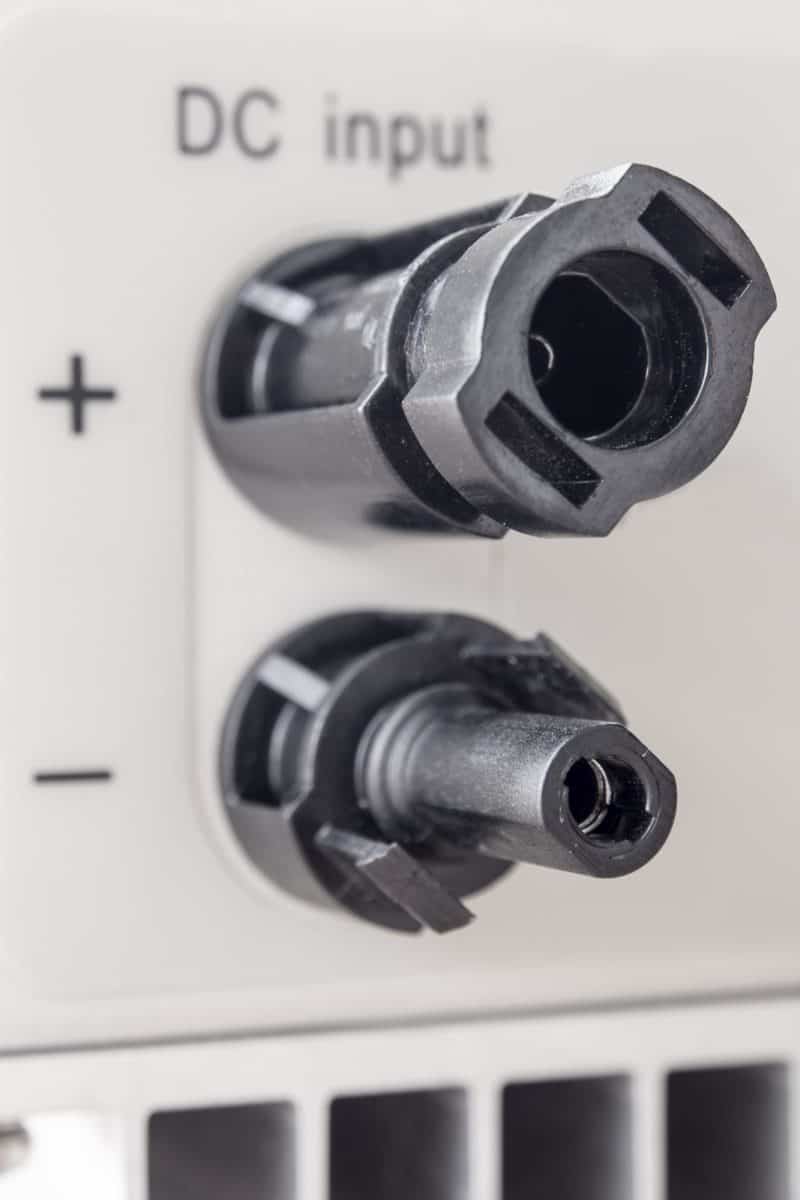

Male And Female Mc4 Connectors On Bottom Side Of Power Inverter For Connect To Solar Panel. - Sol Voltaics: Solar Panel Information
Male And Female Mc4 Connectors On Bottom Side Of Power Inverter For Connect To Solar Panel

Can solar panels Work in reverse?

Yes, but it’s not very efficient. Solar panels work best when they all face the same direction and generate electricity from the same side.

If you have an extensive system, it’s crucial to ensure that each panel is connected with positive polarity on one end and negative polarity on the other so that power generation flows from one end of your solar array to another!

If they are wired reverse, your system will produce less electricity, and you won’t get the most out of every PV module.

If this happens, it usually means that one inverter or generator may need to be repaired to generate power correctly (positive on one end and negative on the other).

Dc Engine Sketch. - Sol Voltaics: Solar Panel Information
Dc Engine Sketch.

How do you test DC polarity?

There are several ways to test DC polarity. Here’s how you can test DC polarity;

  1. You can attach a voltmeter or multimeter to your generator’s output leads at the terminals.
  2. Then, you will need to turn off the power going into your DC circuit breaker box before removing covers protecting wiring terminals on PV modules outside.
  3. Now place probes from your multimeter onto each of the two-terminal leads connected to an individual PV module.

If both probes read positive voltage, this side of the generator has positive charges, and negative charges are on the other side!

This voltage difference allows electric current to flow through wires from one end to another, producing electricity!

This is correct solar panel polarity so continue testing all panels with the same method. If they are wired reverse, your system will produce less electricity, and you won’t get the most out of every PV module.

Cables Grounded
Cables Grounded

Are Solar Panels energy negative?

Some solar panels are energy negative, meaning they take in more electrical power than they generate.

This is good because it allows you to store excess energy from your system for later use or sale back onto the grid – this makes switching over to renewable sources of electricity easier!

However, if your generator polarity has been reversed and your inverter doesn’t detect that, you will have an energy deficit.

To prevent this, ensure all PV modules have correct wiring in terms of positive/negative polarities. Refer back to step one and identify which wire corresponds to positive voltage.

So when connecting leads from the voltmeter onto the DC circuit breaker box terminals inside where wires enter the house, you can attach a positive (+) probe to the terminal with the corresponding color of the wire and a negative (-) lead on the other.

If red was initially connected to the negative (-), switch it so that black is attached instead! Then reconnect covers over wiring terminals after checking again for proper polarity.

Solar Panel Cables
Solar Panel Cables

How do you determine reverse polarity?

Another way to determine reverse polarity on solar panels is by checking for open circuits. If your PV modules are wired correctly (positive/negative leads connected), you should not have any open circuit problems.

However, suppose one lead of a DC circuit breaker box terminal is attached while another isn’t.

In that case, this will generate an open circuit, and electricity won’t flow through the wire from one end to another! You can identify whether or not there’s an issue using a multimeter again.

Remember which probe corresponds to positive voltage so that when you attach probes onto terminals at ends where wires enter the house, red goes + and black goes -.

Voltage Meter Control Panel
Voltage Meter Control Panel

How do you check polarity without a multimeter?

If you don’t have a multimeter or voltmeter, there is another way to check solar panel polarity, but it’s not as accurate. You should use the first two methods we described above instead of this one because they allow for more direct and precise measurements, which means fewer chances of error!

However, if those aren’t available, here are the steps:

  1. First, cut off power going into the DC circuit breaker box by switching off the corresponding switch(es).
  2. Then remove covers protecting wiring terminals where leads from PV modules enter the house.
  3. Now attach the positive probe (red) onto the terminal with a red wire coming out and the negative probe (black) onto the other side with a black wire.

If both probes read positive voltage, this side of the generator has positive charges, and negative charges are on the other side!

Maintenance Engineer Solar Energy Systems Engineer Perform Analysis Solar Panels. - Sol Voltaics: Solar Panel Information
Maintenance Engineer Solar Energy Systems Engineer Perform Analysis Solar Panels.

What Happens if you hook up a solar panel backward?

If you hook up a solar panel backward, the system will not work correctly.

The output of the inverter can be affected because it cannot correctly detect whether or not there is enough electricity from the generator to power your home/whatever device is hooked up!

The inverter may also not be able to send electricity back into the generator – if it’s even possible for you. There are a few ways that this can happen, so make sure to double-check all wiring connections before powering up your inverter!

Are solar panel connectors standard?

Solar panel connectors are not standard. Some PV modules have MC-type connections, while others have different types of wiring that require specific tools for installation and removal – these might be clamps or pressure terminals, etc.

If you need help identifying your particular kind of connection, contact the manufacturer directly to inquire about it! You can also ask a friend who installs solar panels at their house what they use so you know which one works best for your needs.

Never force anything if it’s too hard because this could damage wires inside, resulting in shorts or fires. Ensure everything is clean during installation by wiping down all exposed parts with alcohol wipes before hooking up the cables together.

Which wire is positive if both wires are black?

If both wires are black, the positive is on the right.

If one wire is red and another is black (the two which were not connected), then it doesn’t matter which side you choose as long as they have a good connection – don’t connect them directly with each other, or this could damage generator wiring!

Remember that there can be more than one positive/negative lead from any given location, so double-check before connecting anything, just in case.

Which Wire Is Positive if Both Wires Are Red?

In some cases, PV modules will have both leads appear red. In those instances, use whichever color either came out attached with white tape as negative (-).

Then connect the red lead to the generator’s positive (+) and black to negative (-). This is not the case with all PV modules, so double-check before connecting.

Maxresdefault 53 - Sol Voltaics: Solar Panel Information
Maxresdefault 53

Are ZAMP solar panels reverse polarity?

ZAMP solar panels are made to be energy positive, which means they give off more electrical power than they take in.

This is good because it allows you to store excess energy from your system for later use or sale back onto the grid – this makes switching over to renewable sources of electricity easier!

However, if your generator polarity has been reversed and your inverter doesn’t detect that, you will have an energy deficit. Ensure that all PV modules have correct wiring regarding positive/negative polarities to prevent this.

Is Go Power reverse polarity?

Go power manufactures solar panels that are also energy positive, allowing you to easily switch over from traditional sources of electricity!

Go power’s inverters don’t have any reverse polarity detection. However, it is recommended that if your generator polarities do get reversed, then correct wiring at the point where they meet by doing steps one through three again.

Then reconnect covers over terminals after checking for proper polarity once more. Remember – red goes +, and black goes negative (-).

General Solar Panel FAQ

What Problems Do Solar Panels Solve?

In environmental terms, solar panels can potentially solve a handful of problems, including;
1. Air pollution
2. Water pollution
3. Greenhouse gases
4. Reduction in fossil fuel use

For individuals, solar energy allows you to become completely self-sufficient when it comes to your electricity needs and can save you a lot of money in the long run.

What Are 3 Important Uses Of Solar Panels?

The three most important uses of solar panels are;
1. Solar electricity. This can be used to power almost any appliance in your home, including TVs, computers, and fridges.
2. Lighting. In addition to the use of low-power, LED lightbulbs, solar panels can provide an efficient, low-cost, and environmentally friendly way to provide lighting to homes.
3. Portable solar. In our modern, always-connected lives, our phones, tablets, and computers are almost always with us, and all run on batteries. Portable PV chargers can help keep our batteries topped up no matter where we are, as long as there is some sun to charge them.

Do solar panels give you free electricity?

Once the cost of the array is paid in full, the energy it produces is free. There are ongoing maintenance costs, too, such as annual panel cleaning, etc.

How much will my electric bill be with solar panels?

Suppose your solar array includes a solar battery backup system, and it is large enough to fully cover your energy usage per day. In that case, your monthly electric bill will be next to zero dollars, even with a grid-tied system.

If your solar array does not include a solar battery backup system, then at night, your house or business will use grid electricity. That cost will vary but expect to pay from 1/3-2/3 of your average electric bill, and that cost will fluctuate seasonally.

Do you save money with solar panels?

The simple answer is, Yes, you save money with solar panels. There is an initial upfront cost, but since solar panels are warrantied for 25 years, you will save money over time. You will also begin to see monthly savings in energy bills, but there are other ways that solar panels pay you back. Those include:
1. Adding value to your home or commercial building
2. Monthly decreases in energy costs
3. The ability to add more energy appliances without increased monthly costs
4. The potential for tax credits for going solar

Can solar panels power a house 24-7?

Most definitely! Solar panels can certainly power a house 24-7, with the addition of a high-quality inverter and a suitable battery bank, of course. To power, a house under normal usage will require a massive solar array, though, and there will be a very expensive initial financial outlay.

Do I need to tell my energy supplier I have solar panels?

This depends on where you live, but in most cases, it’s not necessary to inform your energy supplier that you have solar panels. That said, you may be producing excess power with your solar system, in which case you may be able to sell that excess power back to energy companies.

In this case, you’ll naturally need to be in contact with them.

What Are Solar Cells Known as and Why?

Solar cells are also called photovoltaic (PV) cells. They are called so because the term ‘photovoltaic’ literally means light i.e. photo and electricity i.e. voltaic.

These cells generate electricity through the photovoltaic effect. This effect basically causes the generation of free electrons from the semiconducting silicon material of the solar panel when sunlight hits its surface.

What Type of Solar Panels Are Most Efficient and Why?

There are currently three types of solar panels available in the market that are:
1. Monocrystalline
2. Polycrystalline
3. Thin-filmed

Among these, monocrystalline solar panels are known to be the most efficient among all others.

Does heat enter your home through the roof?

Absolutely. Heat enters your home through your roof, and on a hot day your attic can get up to 150 degrees Fahrenheit or more. Through conduction, heat from the sun warms your roof which then warms your attic and the rest of your home.
